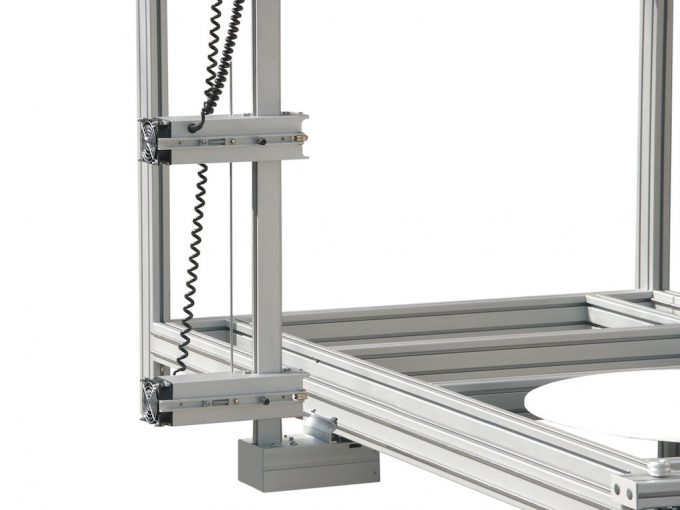

T SERIES OF EPS CUTTING MACHINES

AFFORDABLE AND VERSATILE

  • OVER 2500 UNITS INSTALLED WORLDWIDE
  • 1 OR 2 CUTTING WIRES OF UP TO 300 CM LENGTH
  • MULTIPLE SIZES AND CONFIGURATIONS AVAILABLE
  • OPTIONAL UNIQUE INDEPENDENT AXIS CONTROL FEATURE
  • MULTIPLES 3D OPTIONS (TURNTABLES, LATHES, ETC.)
  • MAX. TRANSIT SPEED OF UP TO 5 METERS/MIN.
  • VARIOUS WIRE TENSIONING OPTIONS: SPRING, ELECTRIC, PNEUMATIC
  • ​EUROPEAN QUALITY WITH CE CERTIFICATION
  • BACKED BY MEGAPLOT'S 20+ YEARS OF DESIGN EXPERIENCE
Masz pytanie? Skontaktuj się z nami

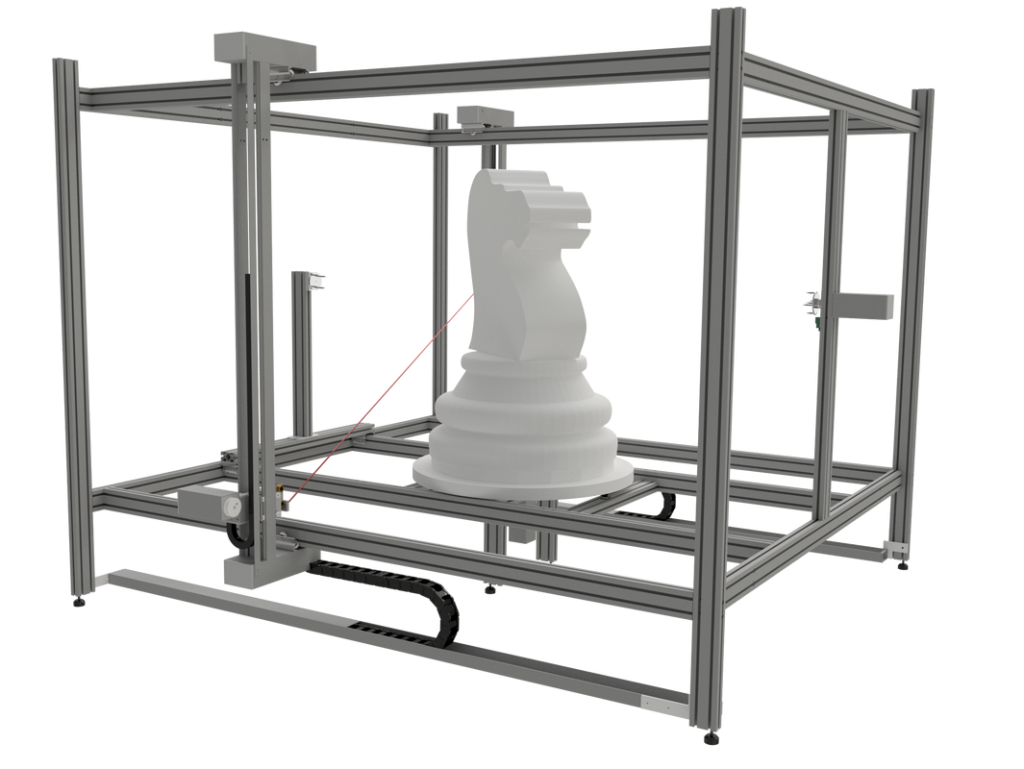

3D CUT ON TURNTABLE

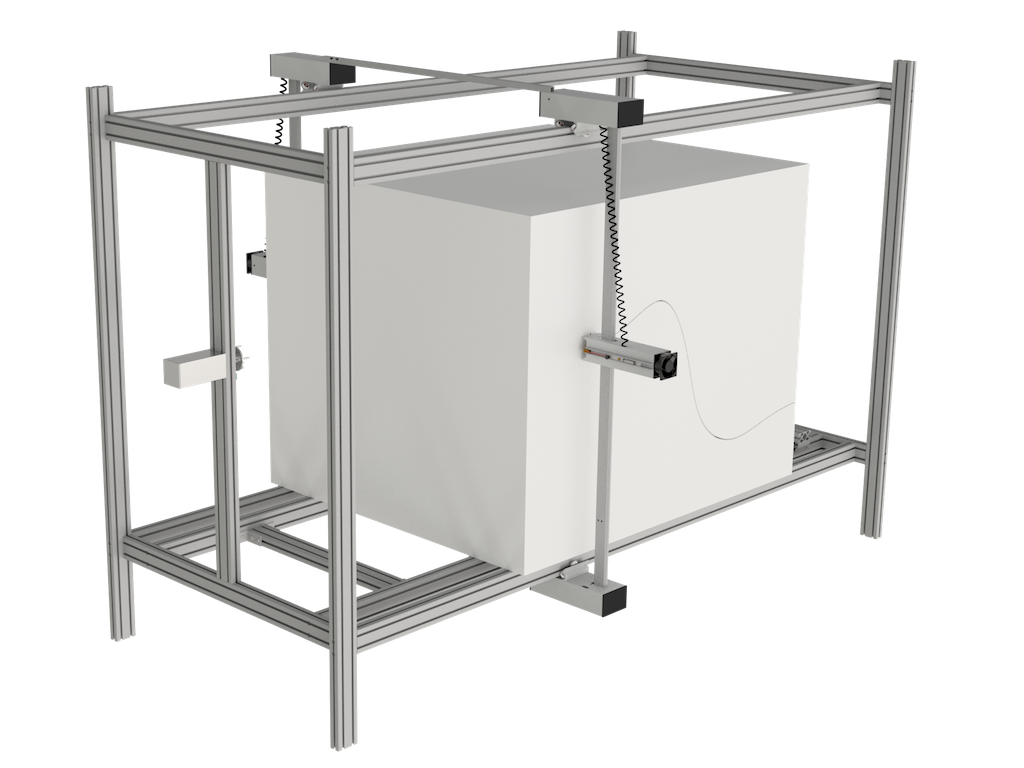

INDEPENDENT AXIS CUT

SHAPEWIRE CUT

STANDARD MODELS/CONFIGURATIONS

"Z" = MACHINE WIDTH = CUTTING WIRES' LENGTH

This dimension determines e.g. the max. length of your 2D moulding.

"X" = MACHINE LENGTH

This dimension determines. e.g. the max. length of your column cut on the lathe.

"Y" - MACHINE HEIGHT

This dimension (always around 1220-1300 mm on standard MegaPlot machines) determines the max. height of the EPS block that will fit on the machine.

  "X" OF 130 CM
"SMALL"
"X" OF 240 CM
"MEDIUM"
"X" OF 305 CM
"LARGE"
"Z" OF 130 CM (MW1300) MW 1300 SMALL MW 1300 MEDIUM MW 1300 LARGE
"Z" OF 150 CM (MW1500) MW 1500 SMALL MW 1500 MEDIUM MW 1500 LARGE
"Z" OF 250 CM (MW2500) MW 2500 SMALL MW 2500 MEDIUM MW 2500 LARGE
"Z" OF 300 CM (MW3000) MW 3000 SMALL MW 3000 MEDIUM MW 3000 LARGE

CUSTOM SIZES AND CONFIGURATIONS AVAILABLE - please contact us for details

Looking for a beautiful industrial solution? Check out our new Open Frame series.

Need more cutting wires? Consider the multiwire MW series.

Need something smaller? Please check our P60 series.

OPROGRAMOWANIE IXSHAPER

  • unlimited free updates for all MegaPlot customers
  • extreme easy of use yet lots of powerful features
  • will work on any Windows PC with USB, including Windows 10
  • available in 11 different languages
  • complex 3D cuts made simple (based on your existing 3D models)
  • built-in support for HPGL.plt (e.g. CorelDraw), dxf (e.g. AutoCad), RAW 3D (e.g. Rhinoceros 3D), EPS/AI (e.g. AdobeIllustrator), dxf 3D (e.g. AutoCad)
  • multiple objects auto-linking & on-screed cutting simulation
  • built-in sample drawings for each type of cut
  • easy-to-use shape duplication feature
  • arch cutting feature
  • auto-stop and continuation for a broken wire replacement

iXshaper is a Windows application you install on the PC you use to control your MegaPlot machine (via USB). It is written by our own team of programmers to take full advantage of your MegaPlot hot wire cutter. As a result, it will not work with any third-party machine. Click here to learn more about iXshaper

SPECIAL FEATURES & 3D ACCESSORIES

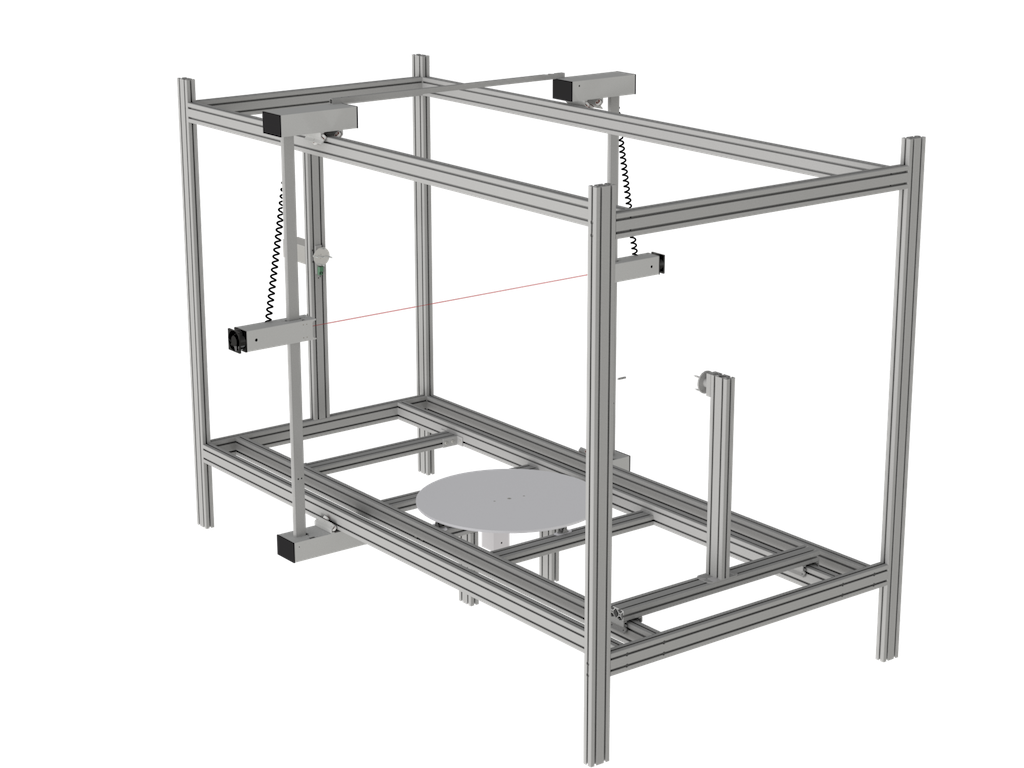

TURNTABLE

  • 3D cuts out of 3D models or a series of 2D files
  • Can cut any symmetrical or irregular shape
  • Completely automatic mode & full manual control
  • Works with the straight cutting wire and also shapewire
  • Support for PLT, DXF, EPS/AI, RAW 3D , STL and DXF 3D
  • Powerful and precise movement mechanism
  • Easy to use yet offering unlimited possibilities
  • Up to 3 turntables on the same machine

LATHE

  • perfect for columns and balusters
  • easy-to-use with built-in rotary and lathe modes
  • supports the straight cutting wire as well as shapewire
  • create creative twisted shapes
  • grooves, threads and similar 3D features
  • powerful and precise mechanism
  • software-controller but also full manual control

SHAPEWIRE BAR

  • temporarily replaces the straight wire to produce interesting rotary shapes
  • works with both turntable and lathe
  • perfect for grooves, threads and similar shapes
  • 1 mm thick shapeable wire (reusable)
  • will heat up to 50 cm long pieces of shapewire bar
  • easy to install and remove when not needed

INDEPENDENT AXIS CONTROL

  • unique load cell and motor-controlled unlimited wire length change feature
  • advanced software-based wire tension and heating control
  • consistent wire temperature and tension regardless of current length
  • will cut all kinds of tapered shapes
  • material width and position calculations
  • simple two-color drawings support
  • unlimited trolleys' offset

DOUBLE WIRE

  • double the yield with a second cutting wire
  • two identical shapes produced at the same time
  • variable wire distance
  • available for all spring- or pneumatically-tensioned Twister Pro series units
  • quick removal of the additional wire if a single wire and full working area are required
  • not available for the independent axis units with the unique unlimited wire length change feature and electric wire tensioning
  • PNEUMATIC WIRE TENSIONING

    • increased wire tension for the widest units with thicker cutting wires
    • optional upgrade for all 2500 mm wide units
    • included in the base price of all cutters of 3000 mm or more
    • requires a small air compressor (not included in the price)
    • simple knob wire tension adjustment

    WIRED HANDHELD/REMOTE CONTROLLER WITH A DISPLAY

    • convenient overview of current machine parameters:
      • wire location
      • wire heating status and power
      • wire tension (independent axis control units)
      • limit swiches status
    • on-the-fly adjustment of parameters during a cut: increase/decrease wire temperature, increase/decrease cutting speed
    • start/stop/continue a cut
    • full manual control of machine movement in all axes

    TITANIUM WIRE ®

    • best resistant hot wire on the market. Period.
    • custom made for MegaPlot machines to ensure limited stretching and breakage
    • can withstand higher temperature to increase cutting speed
    • can be tensioned more to ensure accurate cuts
    • available as a paid upgrade for all Twister Pro series units
    • included in the price of all independent axis units
    • available in new diameters: 0.15, 0.25, 0.30, 0.35, 0.45, 0.55 and 0.6 mm
    • can be added to an existing machine to improve performance

    TECHNICAL SPECIFICATION

    WORKING WIDTH = CUTTING WIRE LENGTH 60 cm (T610)
    130 cm (T1300)
    150 cm (T1500)
    250 cm (T2500)
    300 cm (T3000
    WORKING LENGTH 130 cm (Small)
    240 cm (Medium)
    305 cm (Large)
    WORKING HEIGHT 123 cm
    MAX. TRANSIT SPEED 3.000 cm/min.
    (5.000 cm/min for independent axis units)
    CUTTING WIRE 1 cutting wire (2 wires in DoubleWire units(
    NiCr or TitaniumWire 0.15-0.60 mm (depending on machine width)
    wire tensioning: spring OR pneumatic OR electric (independent axis units)

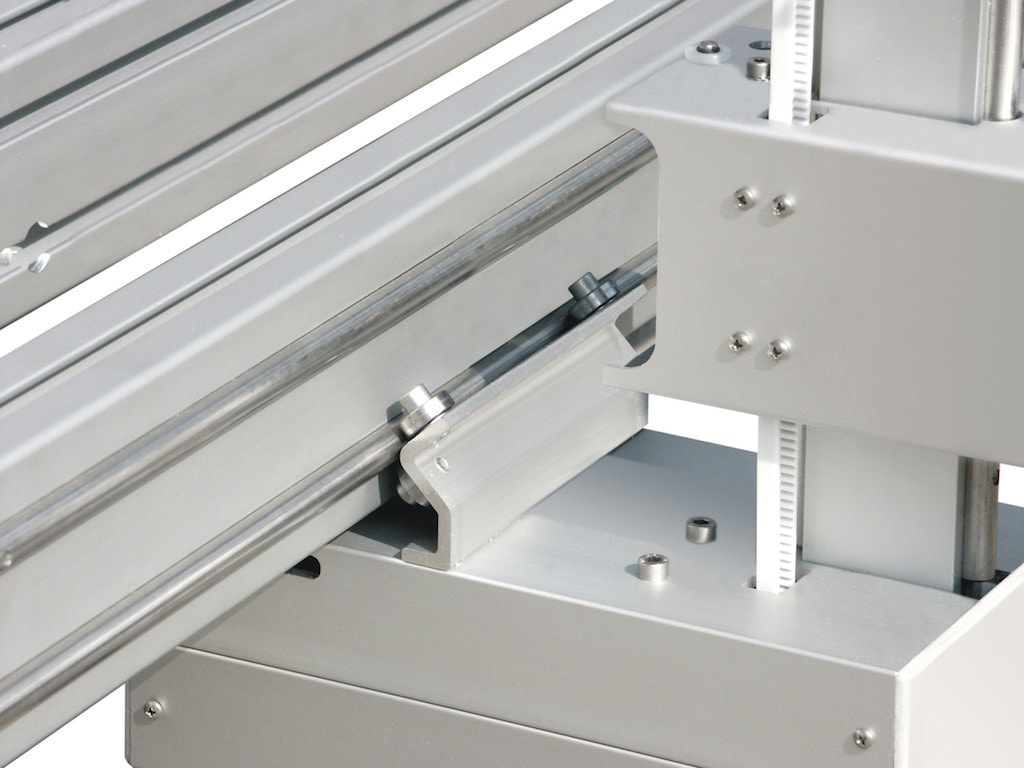

    X & Y DRIVES stepper motors & 10T2.5 cog belts
    SOFTWARE RESOLUTION 0.001 mm
    OPTIONAL ACCESSORIES TurnTable
    Lathe
    ShapeWire Bar
    DoubleWire
    Independent Axis Control
    Pneumatic Wire Tensioning
    TitaniumWire
    Handheld/Remote Controller
    ACCESSORIES NOT AVAILABLE IN T SERIES 5-wire MW add-on (OF only)
    BarCode Scanning
    POWER REQUIREMENTS 230V, 50Hz, from 500W up to 1kW (DoubleWire T3000)
    PC REQUIREMENTS Windows XP, Vista, 7, 8 or 10
    SOFTWARE iXshaper, unlimited free updates, support for:
    plt, dxf, EPS/AI, RAW 3D
    WARRANTY complete 5-year warranty on EXW (ex-works) basis
    INCLUDED IN THE PRICE hot wire cutting machine
    ARM-based electronic controller
    iXshaper software with unlimited free updates
    a 100-gram spool of cutting wire
    assembly and operational manuals
    year-round tech support
    unlimited free training in our factory in Poland
    NOT INCLUDED IN THE PRICE Windows PC necessary to control the machine
    graphics software, e.g. CorelDraw
    installation and training on site (if required)

    Complete 5-year warranty on all CNC hot wire foam cutters made by MEGAPLOT with 24/7 technical support at your disposal.
